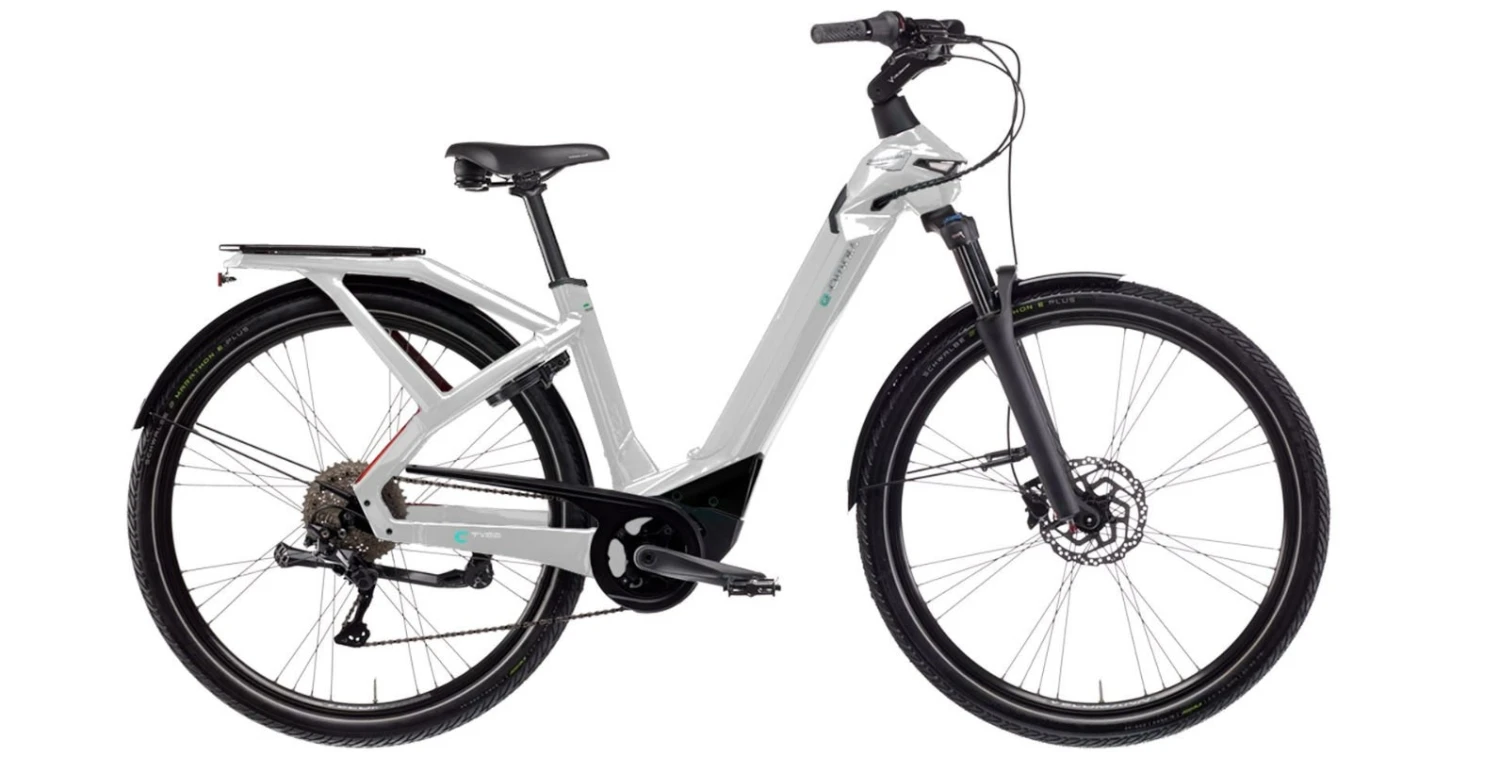

Bianchi E-Omnia C Type Urban Disc E-Bike

The Bianchi E-Omnia C Type Urban Disc E-Bike is designed for a cosmopolitan person who is attentive to new trends and environmental issues. The user chooses this bike for city commuting and weekend rides.

Specifications

Motor Unit – Bosch Performance Line CX 250W 85NM

Battery – Bosch Powertube 625WH



FRAMESET

e-Omnia C Type Step Thru – Chain drive ALU / Sizes SM, MD, LG (45, 50, 55).  Ready to fix chainguard, post mount 180mm disc brake type, ready to fix rear kickstand, custom rear carrier integrated in the frame, set dropout (sx+dx) QR 135mm external derailleur.

Fork – SR Suntour XCM34 Boost LOR DS 29″ Travel 100mm

Headset – FSA No. 55R/558 1.5″



Shift Lever – Shimano Deore SL-M4100-R, 10sp

Rear Derailleur – Shimano RD-M5120, DEORE, SGS 10sp, SHADOW DESIGN

Crankset – FSA Metropolis Alloy E-bike specific / crank length 170mm, isis bb axle, w/FSA 38T Steel Megatooth chainring

BB – Included w/motor unit

Chain – Kmc e10S NPBK Anti-Rust 1/2″ x 11/128″ EPT

Cassette – Shimano DEORE CS-M4100-10, 11-42T

Brakes – Shimano BR-MT200, W/180mm Front & Rear Adapters, Resin Pad.

Disc Brake – Shimano SM-RT10, diam. 180mm


Wheels – VELOMANN EBIKE MAXX 29″ – 622X25C

Rear Hub – Formula CL-1422 Center Lock

Tires – Schwalbe Marathon E-Plus 55-622 / 28×2.15


Handlebar – Velomann AL6061, diam. 31.8mm, width 630mm, Rise 34mm, Backsweep 41°

Handlebar Grips – Herrmans Luna Lock

Seatpost – Velomann, length 350mm-15/17” and 400mm-19/21”, diam.31,6mm, 0mm seatback, AL2014 shaft

Saddle – Velomann A038UE0 Unisex, Rail Elastomer, black steel rail, 256×220


Accessories

Fenders – SKS PET MUDGUARDS A65 R

Kickstand – VELOMANN R78 KING EVO REAR MAX 35KG

Rear Rack – custom rear carrier integrated into the frame design

Front Light – Integrated front and side light made with Spanninga

Rear Light – Integrated rear lights made with Spanninga
Specifications subject to change without notice
