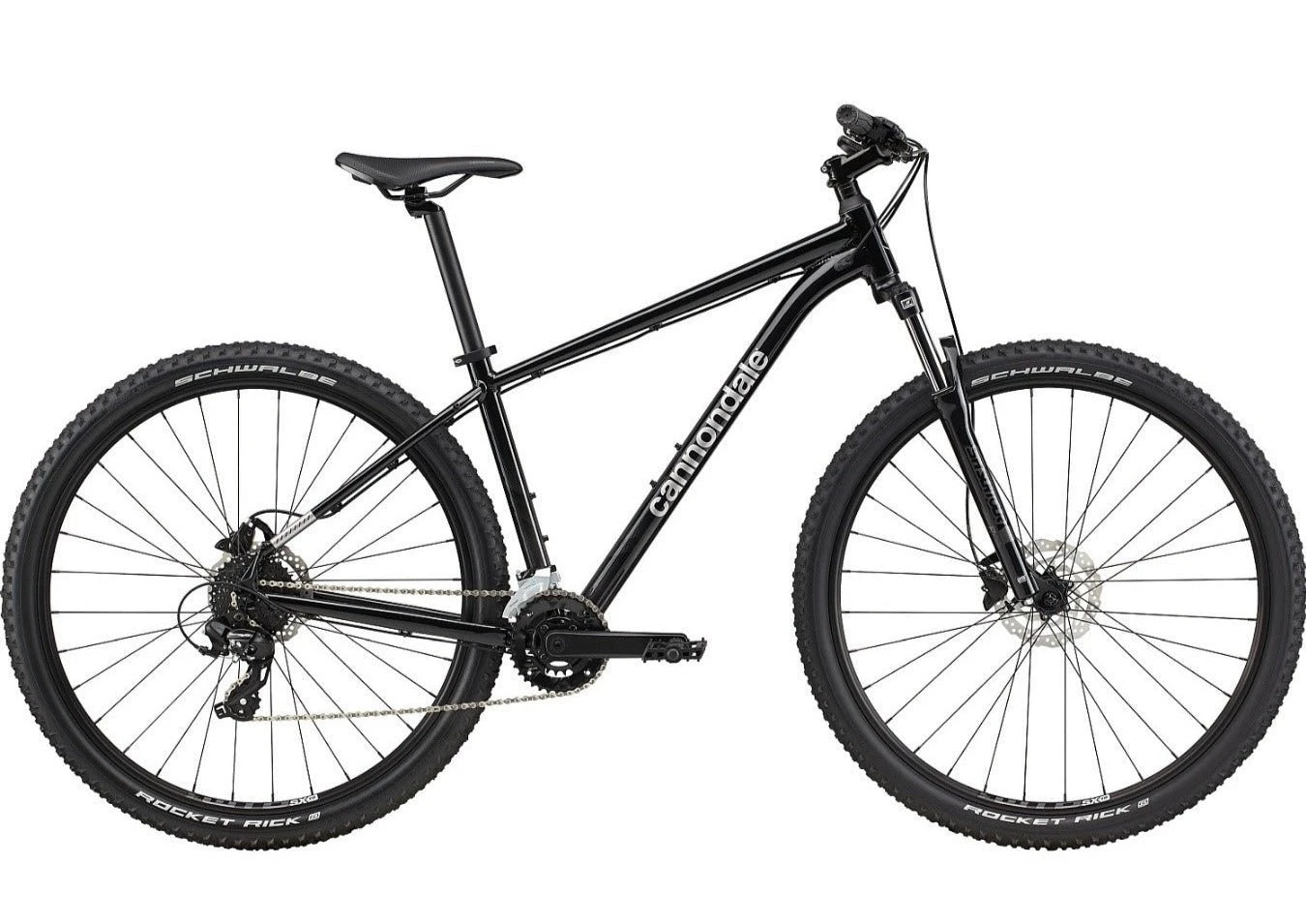

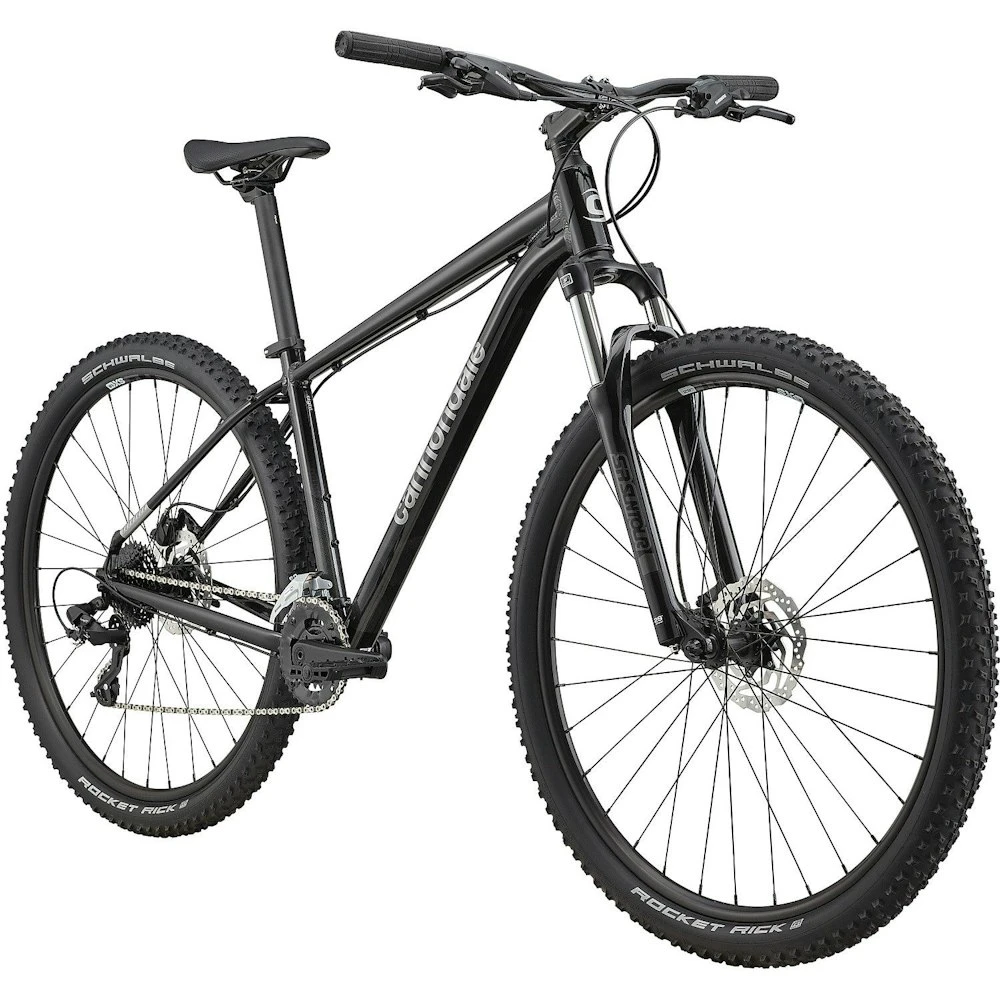

Cannondale Trail 8

Overview

From your first ride to the next big event, the Cannondale Trail uses race-inspired technologies to deliver incredible performance at a remarkable price. Simple yet sophisticated aluminum construction produces a light and agile frame that surpasses any other in its class.
Tech Specs:

Frame: SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73

Fork: SR Suntour M3030, 75mm, coil, 42mm offset (27.5″) 46mm offset (29″)

Bottom Bracket: Sealed bearing cartridge, square taper

Headset: Semi-Integrated, 1-1/8″

Stem: 6061 Alloy, 31.8, 8°

Handlebar: 6061 Alloy Riser, 31.8mm, 25mm rise, 700mm

Saddle: Cannondale Stage 3

Seatpost: Cannondale 3, 6061 Alloy, 31.6 x 350mm (XS – SM), 400mm (MD-XL)

Pedals: Cannondale Platform

Grips: Cannondale Dual-Density

Groupset:

Rear Derailleur: microSHIFT M26L

Front Derailleur: microSHIFT Dual Pull Compact, Band Clamp

Crank: Prowheel, 36/22

Shifters: microSHIFT, 7-speed

Cassette: Sunrace, 11-34, 7-speed

Chain: KMC Z7, 7-speed

Brakes: Tektro cable-actuated disc, 160/160mm rotors

Brake Levers: Tektro

Wheelset:

Rims: WTB SX19, 32h

Spokes: Stainless Steel, 14g

Front Hub: Formula, QR

Rear Hub: Formula QR

Tires: WTB Ranger Comp, 29×2.25″ (27.5×2.25″ – XS, SM), DNA Compound
