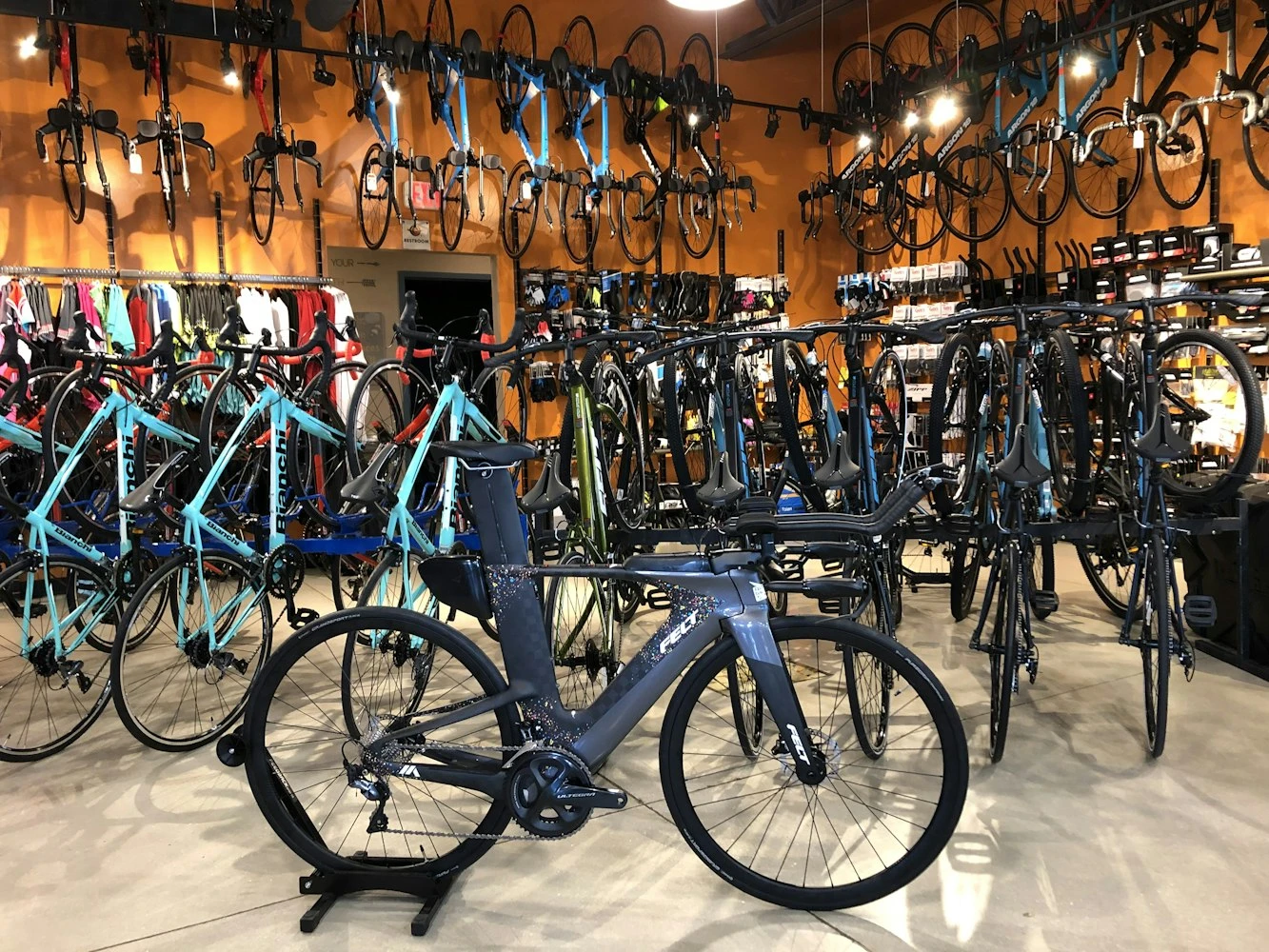

Felt Ia Ultegra Disc 2020

FRAME:
Felt Integrated Aero Tri Disc UHC Advanced + TeXtreme carbon fiber, MMC with InsideOut construction, 68mm BSA threaded bottom bracket shell, 12 x 142mm with Syntace style thru axle, flat mount disc brake standard, horizontal dropouts, replaceable rear derailleur hanger, internal mechanical or electronic cable routing

FORK:
Felt Dagger Disc UHC Advanced carbon fiber monocoque construction, 1.125″ carbon fiber steerer, upper cover, blades, dropouts, crown; internal disc-brake routing, flat-mount disc brake standard, 12 x 100mm thru axle

HEADSET:
FSA integrated, 1.125″ 36¬°/45¬° sealed ACB cartridge bearings MR122 {873E-RS}, split top race H2145 {No.11AGY-2} with Felt compression device

STEM:
Felt Dagger 31.8 Cold Forged

HANDLEBAR:

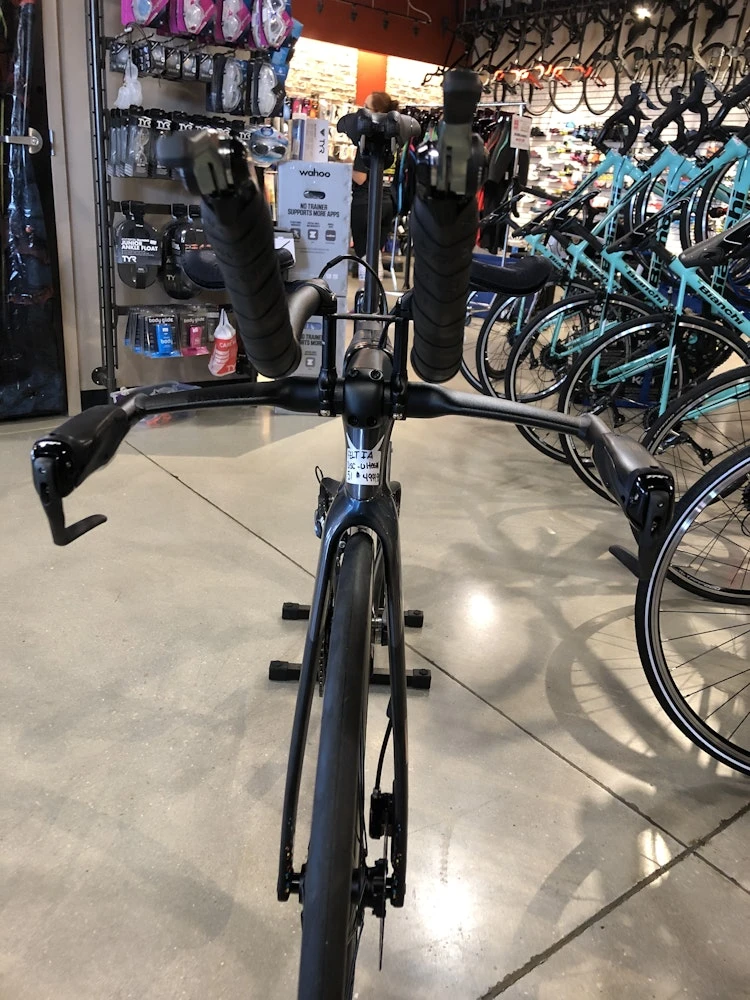

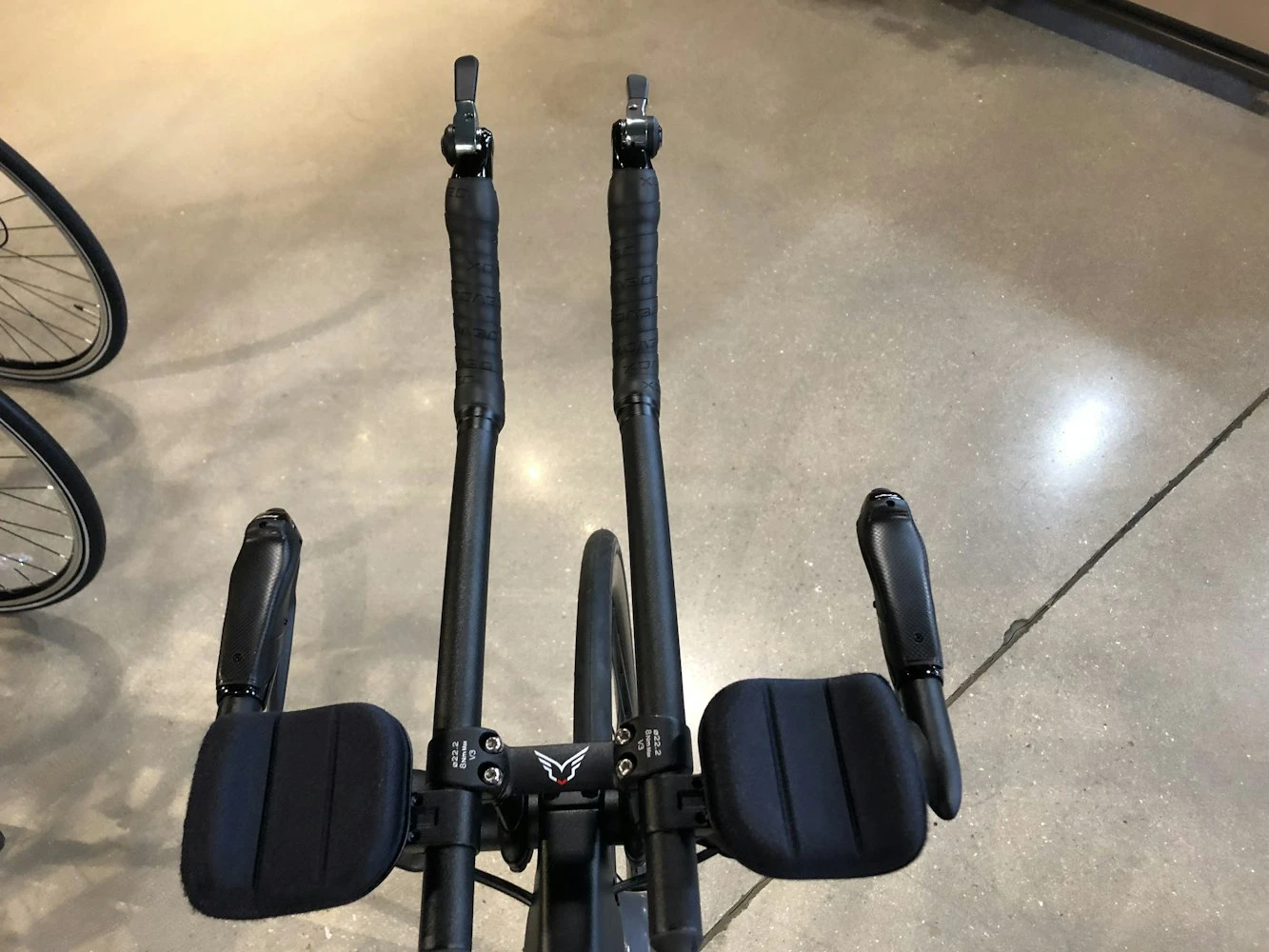

Devox Bayonet 3.1 base bar with Devox Ergomod extensions, ¯31.8mm, 48 – 51cm: 390mm, 54 – 58cm: 420mm

BAR TAPE:
Devox Gel tape and new EVA arm pads with anti-microbial cover

SHIFTERS:
microSHIFT TT 11-speed

FRONT DERAILLEUR:
Shimano Ultegra R8000 braze-on

REAR DERAILLEUR:

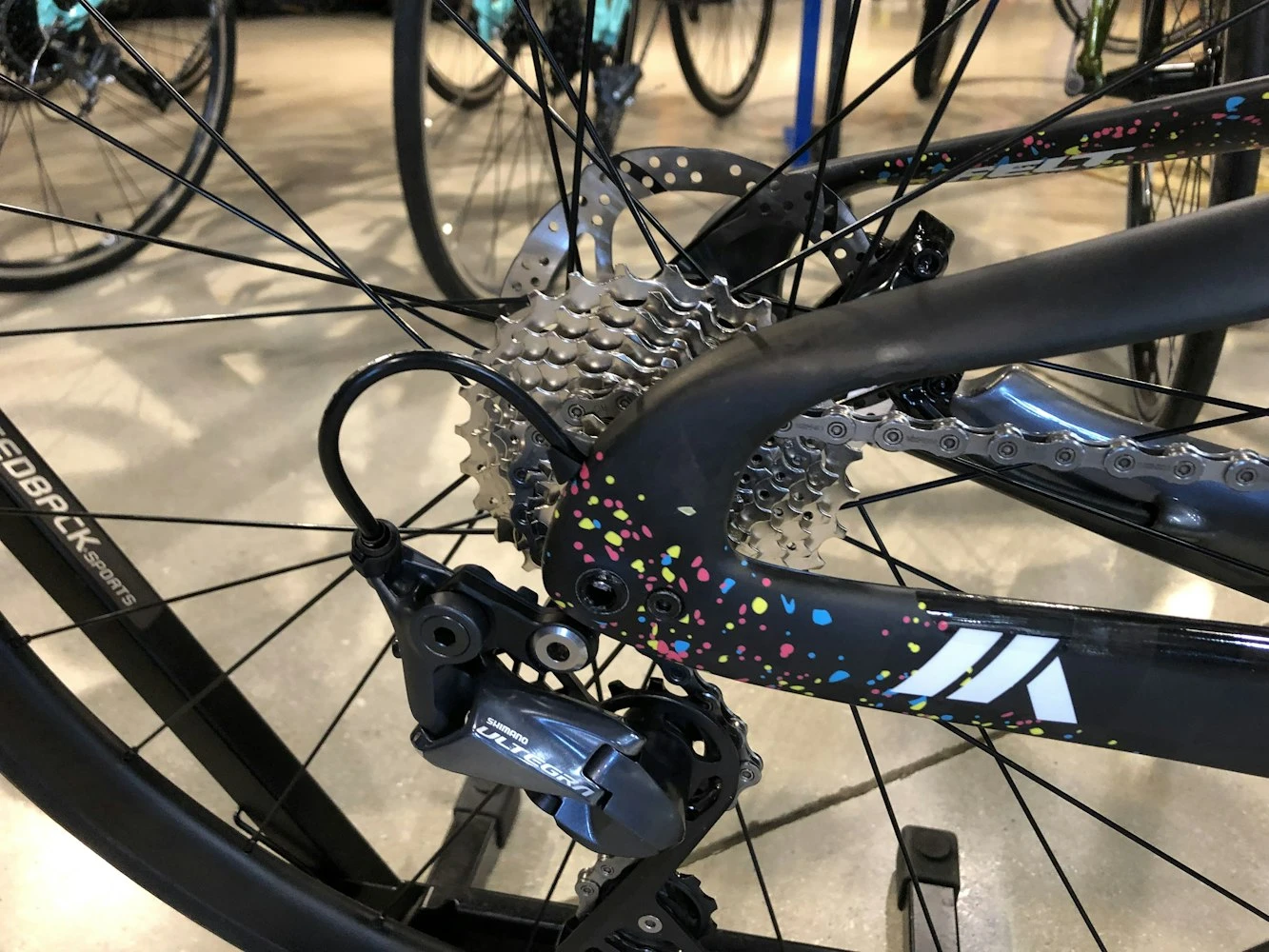

Shimano Ultegra R8000 11-speed short cage

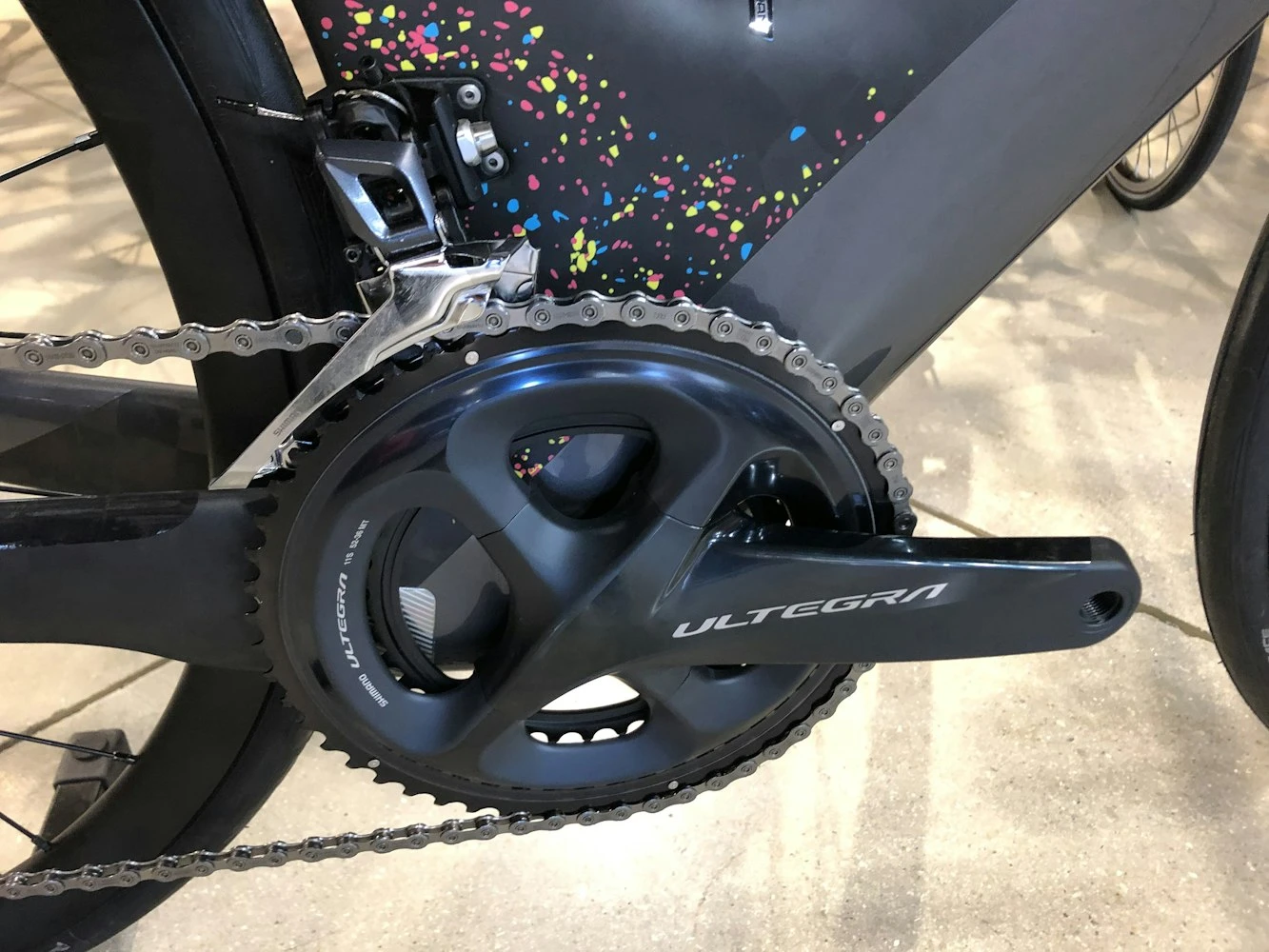

CRANKSET:
Shimano Ultegra R8000, 52/36T, 48 -51cm: 165mm, 54 -56cm: 170mm, 58cm: 172.5mm

BOTTOM BRACKET:
Shimano Hollowtech BSA threaded

CHAIN:
Shimano 11-speed

CASSETTE:
Shimano 11-speed, 11-28T

BRAKE LEVERS:
TRP HD-T910 hydraulic

BRAKE (FRONT):

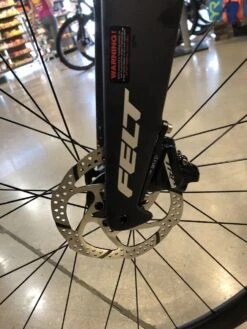

TRP HD-T910 hydraulic disc, 140mm rotor

BRAKE (REAR):

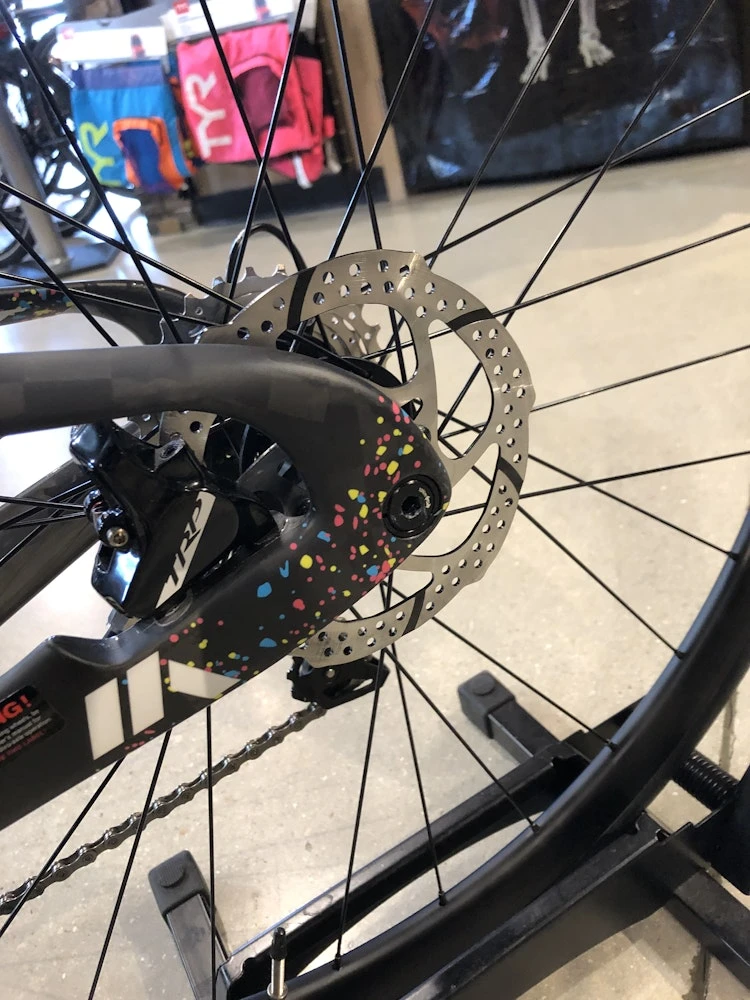

TRP HD-T910 hydraulic disc, 140mm rotor

SADDLE:

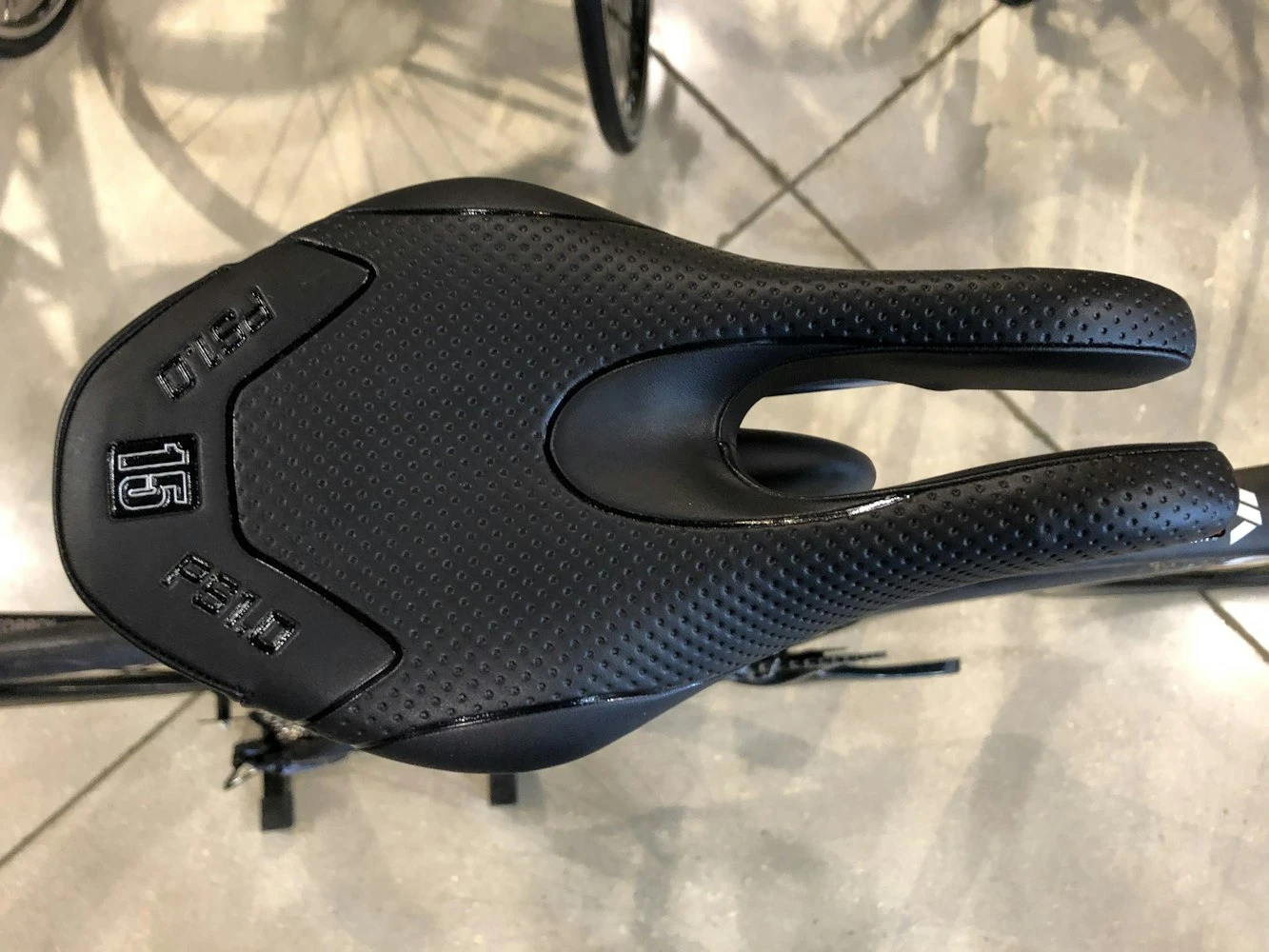

ISM PS1.0

SEATPOST:
Felt VariMount Aero Tri UHC Advanced carbon fiber, 300mm length

SEATPOST CLAMP:
Felt Internaloc integrated with titanium bolts

RIMS / WHEELSET:
Devox 30A Disc, tubeless ready, 19mm width, 30mm depth

FRONT HUB:
Devox RSL3D, sealed cartridge bearing, 12 x 100mm thru axle, 6-bolt, 28H

REAR HUB:
Devox RSL3D, sealed cartridge bearing, 11-speed, 12 x 142mm thru axle, 6-bolt, 28H

THRU AXLES:
Front: 12 x 100 x 118, thread: M12 x 1.5P x 13L, Maxle; Rear: 12 x 142 x 163 (163L + 9 head = 172 total), thread: M12 x 1.0P x 19L, Syntace

SPOKES:
2.0mm stainless steel

TIRES:
Continental Grand Sport Race folding, 700 x 25c

ACCESSORIES:

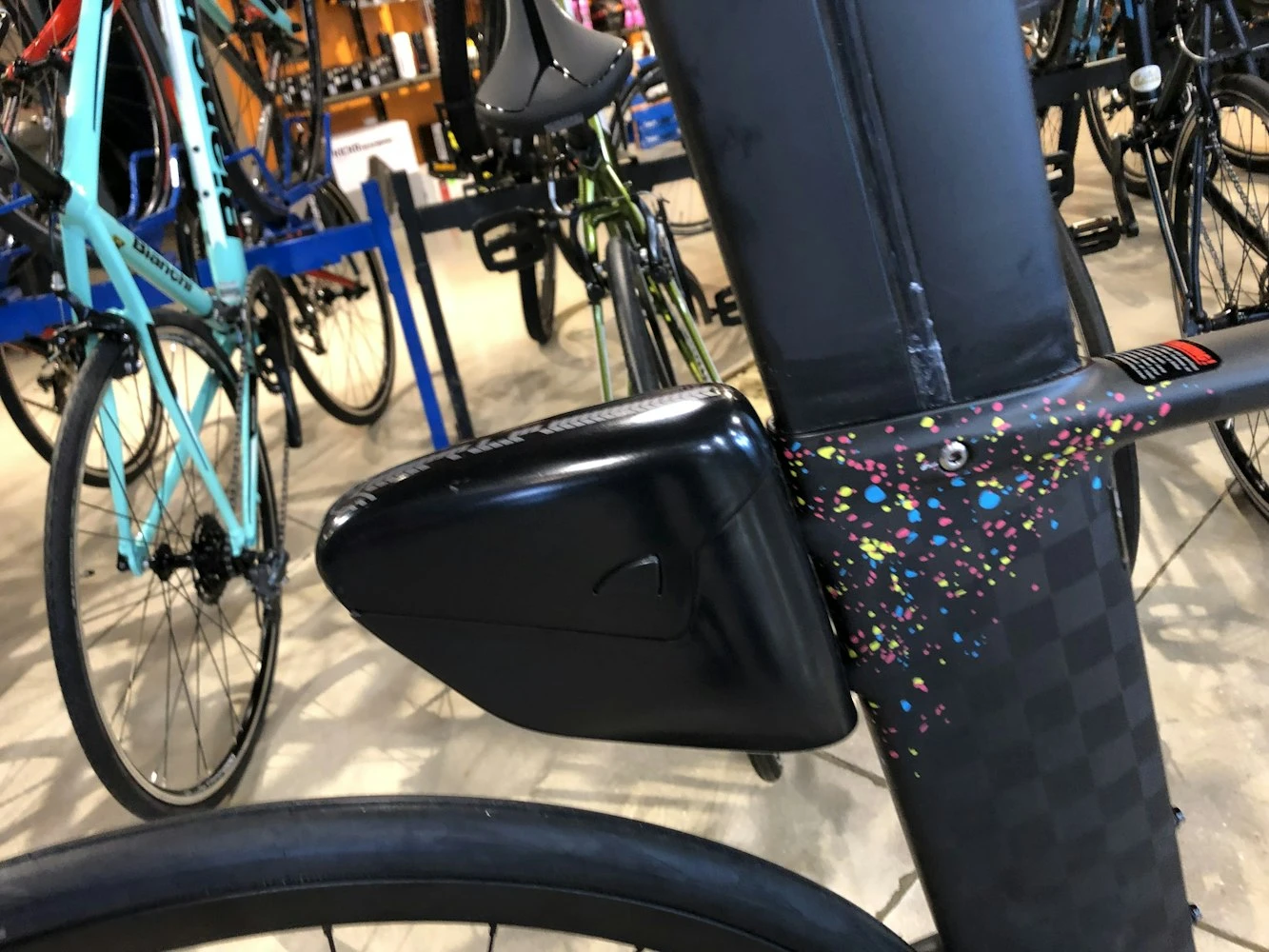

Carbon assembly paste, aero seatpost slot covers, IA CALpac 2.0, IA BTSpac storage box

FINISH (ACCENT):
1) Matte TeXtreme (White Geo), 2) Matte TeXtreme (Spatter, Gloss Charcoal)

WEIGHT:
21.9 lb, 9.93 kg

Specifications subject to change without notice.
